GZPS49, 61, 73 High Speed Rotary Tablet Press

Main Technical Specifications:

Model	GZPS-49	GZPS-61	GZPS-73
Number of Station (set)	49	61	73
Output (tablet/h)	470000	570000	700000
Max Tablet Diameter (mm)	25	16	13
Punch diameter(mm)	38	20	16
Max Filling Depth (mm)	20	20	16
Power (KW)	11	11	11
Main Pressure (KN)	100	100	100
Prepressure (KN)	100	100	100
Net weight(kg)	4800	4800	4800
Overall dimension(mm)	130013002000

The pollution of tablet has been avoided effectively for canceling the hydraulic system. And the electric motor and the encoder were used to control the position of the pressure wheel and adjust the pressure of the pressure of the pressure wheel & the measurement navigation at the same time. Consequently, the weight and thickness of the tablet coming from the two outlets of the double rotary press is equal.
The control cabinet is separated to the double rotary press, which makes it possible that the manipulators control the machine in maintenance area.
If making the change slightly, he can make the two layers tablet.
It make the same pre-pressure and the main pressure because of the same size of the prepressure wheel and the main pressure wheel.
(The exhausting time is 5 to 10 times as much as the old structures.)
Therefore, quality of the tablet is confirmed well. At the same time, because the pressure wheel size is consistent, they are exchangeability. That can lengthen service life of the pressure wheel.

Payment Terms︰ T/T, Wester Union.

GZPS49, 61, 73 High Speed Rotary Tablet Press

Product Description

GZPS49, 61, 73 High Speed Rotary Tablet Press

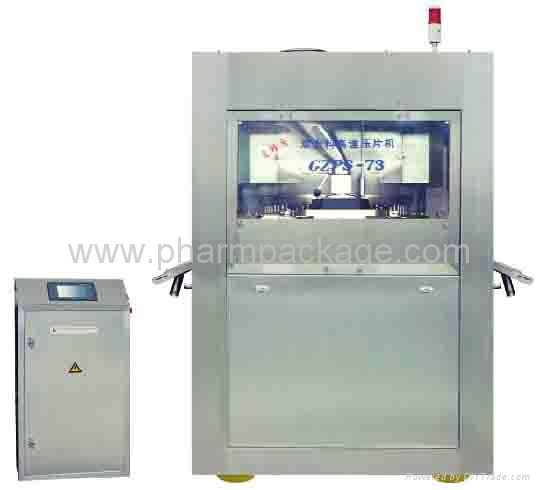

Product Image
